West Salem 1638 HTH horizontal low RPM waste grinder, WSM Low Speed grinding system with infeed vibrating conveyor & large vibrating surge bin hopper

West Salem 1638 HTH horizontal low RPM waste grinder, WSM Low Speed grinding system with infeed vibrating conveyor & large vibrating surge bin hopper

Contact us for price

orCall (360) 864-2800

Description

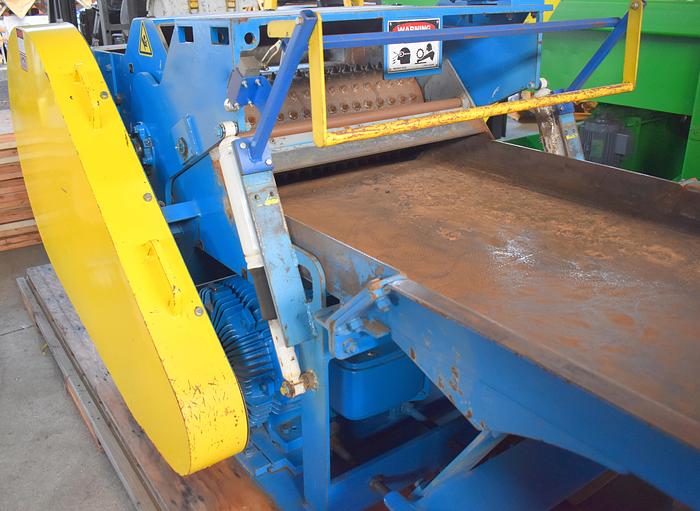

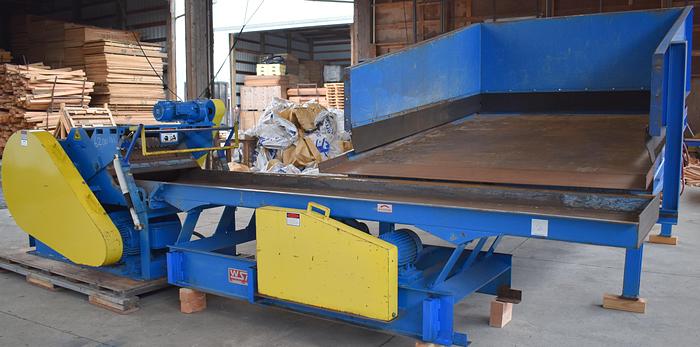

West Salem 1638 HTH horizontal Low RPM waste grinder vibrating infeed conveyor & large vibrating surge bin


West Salem Machinery wood waste grinding system

Model 1638HTH

S/N 126105,

50 HP, 230/460 volt three phase drive motor

Belt drive to grinder head design,

Max working width 37"

Max thickness opening 6-9/16"

Rotor grinder head width 38"

V-rotor grinder head design with  Screen hole size ¾” +-.

2 HP motor for infeed rolls


(1) West Salem Machine infeed vibrating hopper table

Model: 810VDT

S/N 49205

1 Hp, 230/460 volt three phase table drive motor

Overall table size 98" wide x 137" long x 45" deep top hopper

Pneumatic air bag table suspension

(1)  West Salem Machine vibrating infeed conveyor

Model F-SUB12/37

S/N 608105

5 Hp, 230/460 volt three phase drive motor

37" wide x 168" long table size

         Test Run video available

WSM’S HORIZONTAL LOW RPM GRINDERS OFFER A COMPLETE PROCESSING SYSTEM

Specifications

ManufacturerWest Salem Machinery
Model1638 HTH
ConditionUsed
Serial Number126105
Max width37"
max height6-9/16"
HP50
in-feedvibrating conveyor
grinder waste dischargeair swept
surge hopper size8ft x 11ft +
infeed vibrating conveyor lenght14ft +
infeed vibrating conveyor width37 inches
