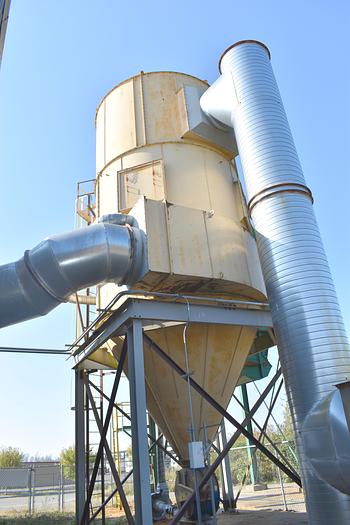

Pneumafil baghouse dust collector, Used 46,000 CFM dust collection system.

Pneumafil baghouse dust collector, Used 46,000 CFM dust collection system.

Contact us for price

orCall (360) 864-2800

Description

Pneumafil dust collector:model# 13.5, serial # 878 Order number 16560

13'-5" diameter reverse air cyclone baghouse dust collector

(460) filter bags 5" diameter 8' long

4,600 (4738?) Sqft of filter media

Rated for 23,000 CFM at 5:1 cloth filter ratio or 46,000 CFM at 10:1 ratio

Pull through design with fan set up on the clean air side of the filter

Rotary filter cleaning head

Dust/dirty air Inlet liner- bolted in

Heavy duty bolt together steel stand

Overall size 14'-3" wide x 14'-3" long x 41'-5" high

Collector weight 16,800 lbs ??

Side safety step ladder and top catwalk platform

Side explosion doors

42" diameter inlet pipe size

48" FAN INLET only ( contact us more details)

Donaldson Torit 20" rotary air lock valve

Model 20AN

S/N 2427656

2 Hp, 208-230/460 volt three phase air lock drive motor

(1) New York Blower fan aux transfer fan

S/N B12764-100

Year 2007

5 Hp, 230/460 volt three phase fan motor

10" inlet pipe size with 8" diameter reducer to air lock

New York 150 HP main blower fan 48" inlet only.

Wheel Size 44ACF, Fan description ACF/PLR Class IV fan

Shop # B12185-100, P.O.# 56640

Year 2007

Rated for 46,100 CFM at 15" SP

Primary fan 150 HP,, 460 volt three phase, 172 amps drive motor

Belt drive to fan arbor design

40" inlet pipe size at vertical stack

Skid mounted blower fan design

150 HP  Eaton Cutler Hammer interior mounted electrical control cabinet

Overall cabinet size 72" wide x 19-1/2" deep x 74" high

Cutler Hammer SVX9000 inverter/soft starter for main fan

some  dust pipe on the exterior of the building from the collector to the building side wall and the pipe from the collector to the aux blower fan

Contact us for a delivered price

Specifications

ManufacturerPneumafil
Model13.5
ConditionUsed
Serial Number878
