De Dietrich glass reactor, used De Dietrich reactor reglassed 150 gallon glass lined

De Dietrich glass reactor, used De Dietrich reactor reglassed 150 gallon glass lined

Contact us for price

orCall (360) 864-2800

Description

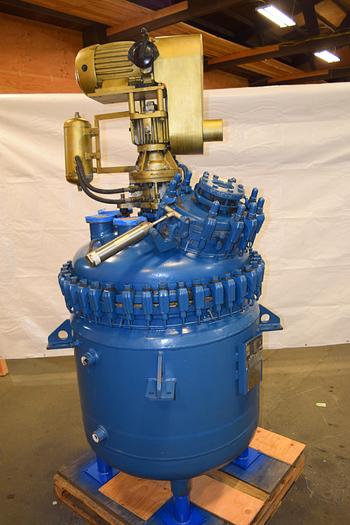

De Dietrich reactor 150 gallon, used De Dietrich reactor reglassed lined pilot reactor, glass lined De Dietrich 150 gallon batch reactor (relined / reglassed - factory wood bracing still in place), More photos and information to available, call for a delivered price, Stored in our warehouse inside heated wood boxes- will also ship inside a wood box,

agitator drive motor: U.S Varidrive Motor: variable speed gear motor  tag reads: frame 23-215, HP 5, 220/440 volt, min 500RPM-Max RPM 3470 , motor RPM 1800, PH 3, code H, design B, rating 55 C., serial# 3039874,  Call with any questions,

M.A.W.P. 100/FV, P.S.I.G. 400 degrees F., W. JKT. M.A.W.P. 150, P.S.I.G. AT 400 degrees F., R T JKT. M.A.W.P. 150 P.S.I.G. W. INT. F.V.,  Nom. Cap 150 U.S. Gals., Please verify info/specs. with attached photos of data plates/tags.

 Altered BY UGE ROMANIA, Date 03/ 2005, SO# 106615,  5700 National Board R Certificate Number, Vessel SN. 30931,  MAWP INT. 100/FV, PSIG AT 400 degree F., MAWP INT. 150, PSIG AT 400 degree F., MAWP INT. 150 PSIG W/INT. F. V., GLASS # C2317, MDMT -20 degree F., Please verify info/specs. with attached photos of data plates/tags.

Buyer will need to confirm all information with manufacturer.

Contact us for a delivered price and additional information

Specifications

ManufacturerDe Dietrich glass reactor, used De Dietrich reactor reglassed
Model150 gallon glass lined
ConditionRefurbished
gallons150
typere-glassed lined
