20,000 gallon Stainless Silo tank, stainless vertical tank, JFB stainless silo

20,000 gallon Stainless Silo tank, stainless vertical tank, JFB stainless silo

Contact us for price

orCall (360) 864-2800

Description

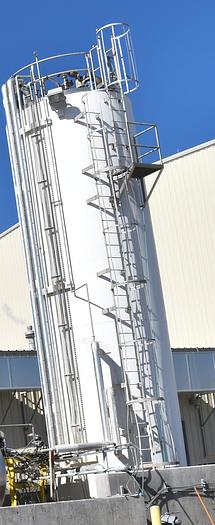

Stainless steel insulated Silo, 20,000 gallon vertical stainless  insulated Silo. Heat Transfer dimple jacket

JBF Stainless

Horizontal 24” – 3-Blade turbine agitator, 3HP, 89 RPM.

Dimple sidewall

Heat Transfer dimple jacket

Manufactured date December 2013

Heat Transfer ASME code “UM” Stamped: Pressure: 150 PSIG, Max. Temp: 200 F., Min Temp.: -20 F, Transfer Media Volume: 13 Gallons.,

Heat Transfer Jacket: Dimple Sidewall: SA-240, SS 304, 18 GA (0.048”) Media: (2) zones- 240 SQ. FT total

Diameter : 120” I.D.

Length: strait side 35 ft.

p.o.# 2012219-006

quote# J0801-13-1 REV 1

Empty weight approx.. 18,500 LBS. full weight nom. capacity 185,000 LBS. using product S.G. = 1.00

Silo/tank has been removed and is stored in yard

no charge for loading

contact us for a delivered price to your location


Specifications

ManufacturerJBF Stainless Silo, stainless vertical tank
Modelstainless silo
Year2013
ConditionUsed
Stock Numbers-4668-06
diameter10 ft inside
length35 ft+ strait side
material of constructionstainless steel inside, carbon steel exterior
agitator3 blade turbine stainless steel
heat transfer jacket dimple sidewall- two zones
capacity20,000 gallons
