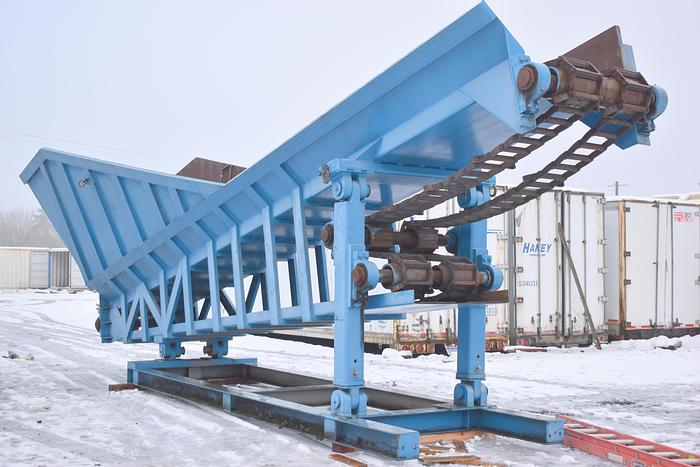

2 strand box chain hopper conveyor unused, 31ft hopper feed twin box chain conveyor 40" wide

2 strand box chain hopper conveyor unused, 31ft hopper feed twin box chain conveyor 40" wide

Contact us for price

orCall (360) 864-2800

Description

2 strand box chain hopper bin conveyor

S drive  shaft  keyed side is 2-15/16”

Gear motors VFDs/frequency drives are available are Sold separately

Mac box chain/ drag chain (made in USA), 6” pin to pin, 2” tall+-, ½” thick sidebars, 11 5/16” sidebar width O.D., 10 ¼” bearing length

Chain conveyor inside width: 40 inches.+-

Chain conveyor over length: 31ft.+-

Rex bearings

Hopper dimensions: 7ft deep+-, 7ft 4 inches width

Hopper walls are ¼” thick

Adjustable incline height: front & back upright supports are hinged and the front upright supports can telescope up and down with holes for pins to lock in desired height

2” thick center divider between chains

Conveyor approx.. overall dimensions: length 31ft, height 10ft 8 inches, width 9 ½.ft.+-

Bottom I-Beam frame width 71”, length 20ft 4 inches

Contact us for a delivered price to your location

Approximate shipping weight 23,000 LBS.

Specifications

ManufacturerShop built
Modeltwin box chain
ConditionUnused
number of box chains2
Conditionnever used, UN-USED
Chain conveyor inside width40 inches.+-
Chain conveyor over length31ft.+-
