Harmony Vertical Baler low profile 8ft tall

Harmony Vertical Baler low profile 8ft tall

Contact us for price

orCall (360) 864-2800

Description

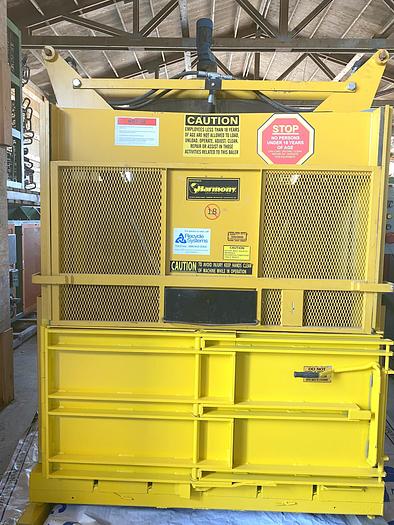

Harmony M60MD Vertical Baler low profile 8ft tall

Operates under an 8 ft ceiling height 95 ¾”

Made In USA.

Model: M60MD

5 hp

Serial# M60MD1989

Full Load Amps: 21

Volts: 208, transformer (230/460 volt) available to purchase

3-Phase

Harmony’s Product Specs

·      Bale Size: 30″ x 60″ x up to 30″ High (762 mm x 1524 mm up to 762 mm)

·      Estimated Bale Weight (Corrugated Cardboard): 700-800 lbs. (318-363 kg)

·      System Pressure:  2,300 PSI

·      Ram Force: 57,805 lbs. (26,220 kg)

·      Cycle Time: 33 seconds

·      Cylinder: Twin 4″ bore (102 mm) 32″ stroke (813 mm)

·      Motor:  5 HP – 3450 RPM

·      Pump: Two-stage

·      Electrical Power:  208/230/460V, 3 Phase, 60 Hz

·      Bale Eject: Hydraulic

·      Bale Tying: Wire twine, strapping

Dimensions

·      Loading Door Opening: 24″ x 60″ (610 mm x 1,524 mm)

·      Unloading Door Height: 39″ (990 mm)

·      Operating Height: 95.75″ (2,430 mm)

·      Overall Depth: 37″ (940 mm)

·      Overall Width: 78″ (1,980 mm)

·      Depth with Door Open: 73″ (1,854 mm)

·      Shipping Height: 81.5″ (2,070 mm)

·      Shipping Weight: 4,237 lbs. (1,922 kg)

·      Required Operating Area: 39.5 sq. ft. (3.7 sq. meters)


Specifications

ManufacturerHarmony
ModelM60MD
ConditionUsed
Serial NumberM60MD1989
