Donaldson Day 256- HRW- 8, pulse jet baghouse dust collector, 2,547 filter cloth area, 25,000 to 41,000 CFM airflow range

Donaldson Day 256- HRW- 8, pulse jet baghouse dust collector, 2,547 filter cloth area, 25,000 to 41,000 CFM airflow range

Contact us for price

orCall (360) 864-2800

Description

Donaldson Day 256- HRW- 8, pulse jet baghouse dust collector, 2,547 filter cloth area, 25,000 to 41,000 CFM airflow range

Baghouse serial #: 112379, Job # 422123

TWO 75HP New York Blower fans, SIZE: 33 1V., SHOP #: F 1985-100, P51010221

Baghouse airflow range in CFM. 25,600 – 41,000 ( customer needs to verify with Donaldson)

2,547 sq.ft. filter media cloth area

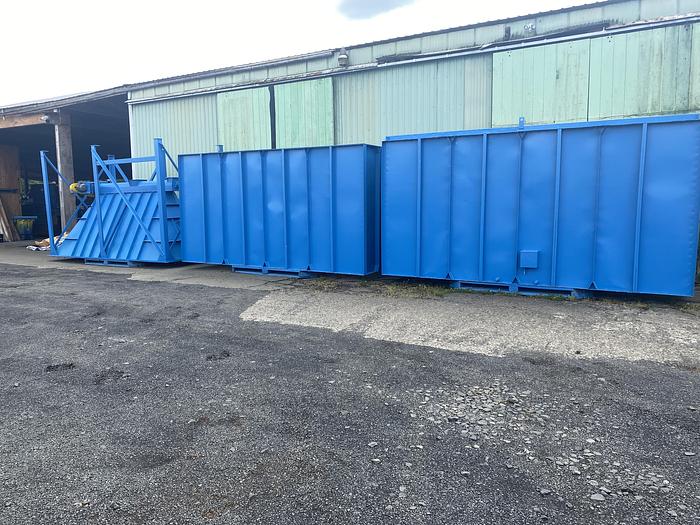

Baghouse & fans have been primed & repainted blue

Inlet blow-pipe has been repainted blue

Photos of dust collector prior to repainting & primer are available, so are additional photos after painting

filter bags and filter cages are stored inside of large wood box in warehouse

Top Walk-in style plenum for easy filter bag & pulse jet system maintenance

Blowpipe for fans & inlet to baghouse top clean air inlet

Some of the electrical starters and disconnects- about half of them.

Donaldson Airlock

10ft screw auger attached to discharge hopper

Installation contractor might be available to re-install dust collector(customer will contact the contractor directly).

Fans will be videoed for a quick demonstration under power.

Contact us for a price or a price including freight or additional details

Performance, capacity, dimensions, weights, and measurement are sometimes based on 3rd party information and could be inaccurate, or errors can occur in our description. The purchaser will need to verify all information from the manufacturer or other sources. We did not design or build this system and will not be responsible for the functionality of the explosion vents. When explosive dusts are present, the owner/operator is responsible for compliance with NFPA 68, 69, 654, and all other applicable codes

Specifications

ManufacturerTorit
Model256 HRW-8
ConditionUsed
Serial Number112379
CFMbaghouse Airflow range 25,600 to 41,000
fans2 New York Blowers
